gas valve LJ710 40-90

home / product / thermostat valve / gas valve LJ710 40-90

How Can We Help You ?

We will reply to you within 12 hours after receiving the inquiry in working days.

13858446282 Contact Us

gas valve LJ710 40-90

13858446282 Contact Us
  • Description
  • Drawing

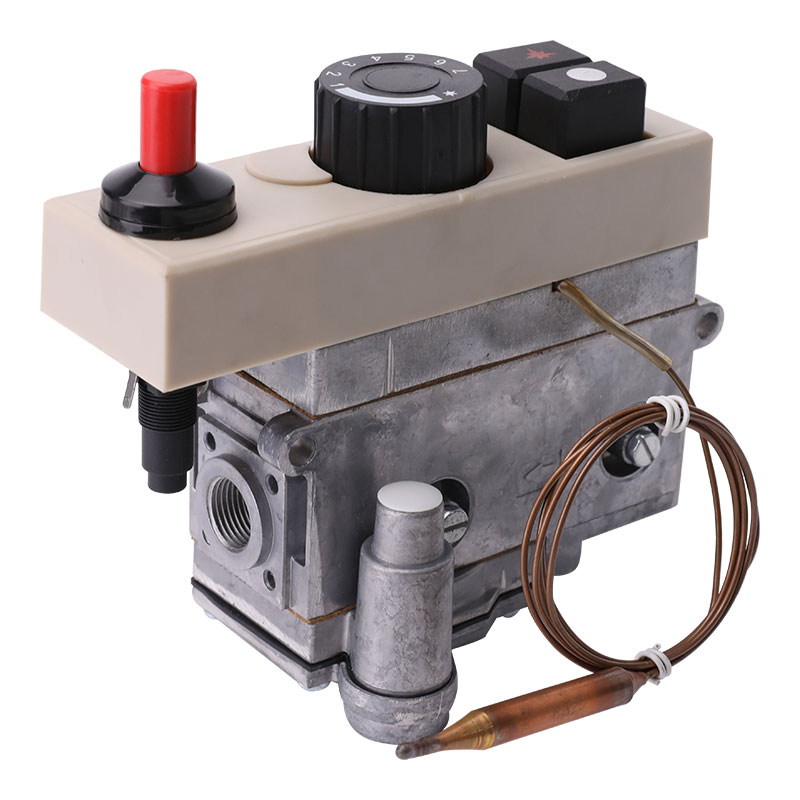

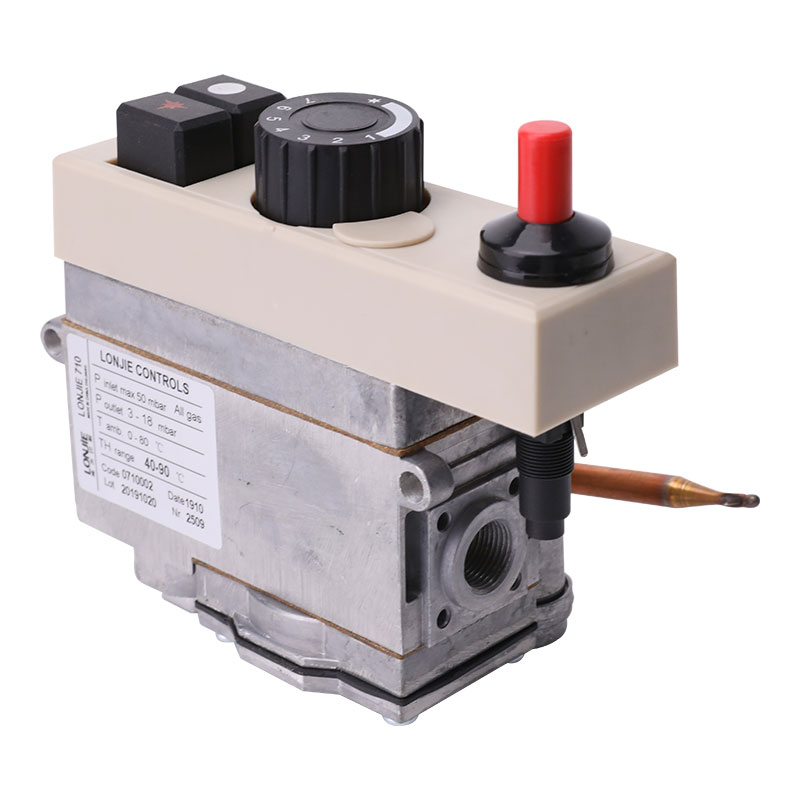

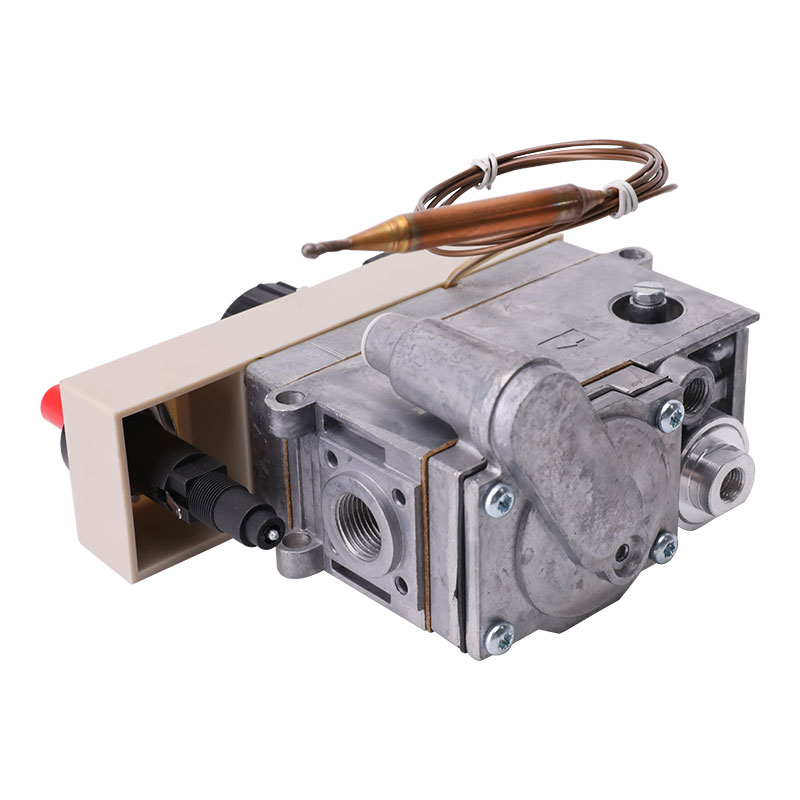

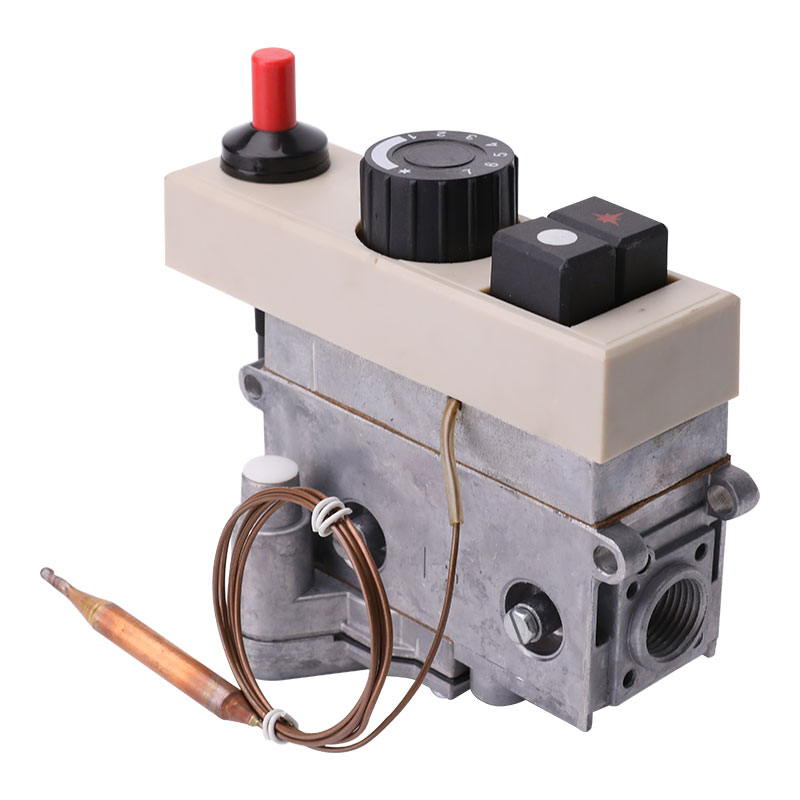

  • Product name Gas valve LJ710 40-90
    Breedname/specifications gas valve LJ710
    Application This gas valve is used in plumbing equipment
    Features The gas flow rate can be manually adjusted. The air inlet is equipped with a clean gas filter device. Inlet and outlet pressure detection hole. Equipped with an emergency shut down button, and an automatic fire protection device
    Main technical parameters Installation interface size: thermocouple thread interface M9x1, eternal open flame interface M10x1, gas inlet thread: G1/2, gas outlet thread: G3/8; Suitable for gas NG, LPG, CNG, Maximum working pressure 1/2PSI, Temperature sensing line length 1000mm
