gas valve LJ710 120-200

home / product / thermostat valve / gas valve LJ710 120-200

How Can We Help You ?

We will reply to you within 12 hours after receiving the inquiry in working days.

13858446282 Contact Us

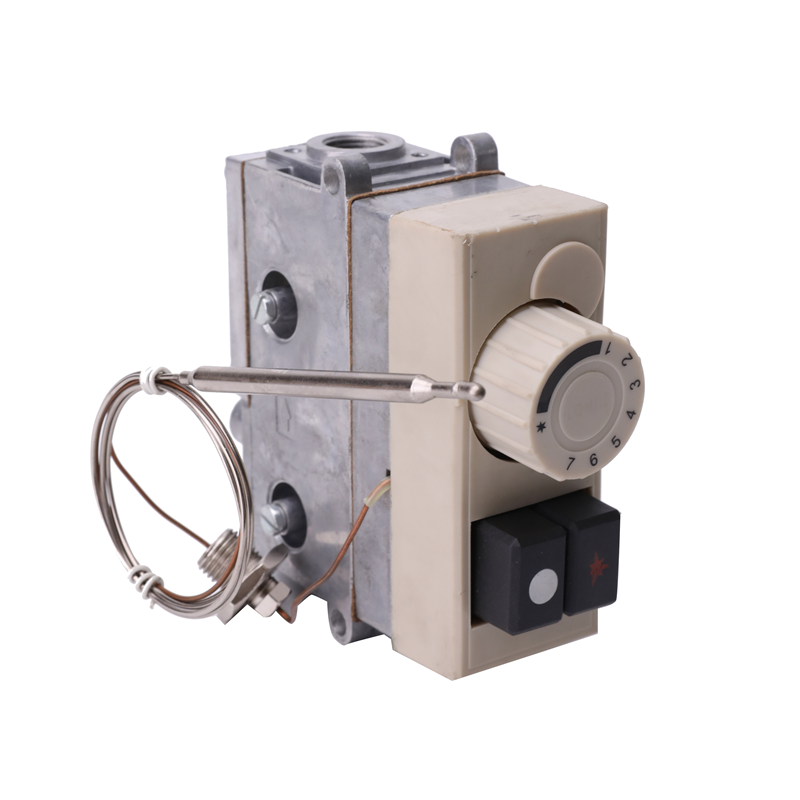

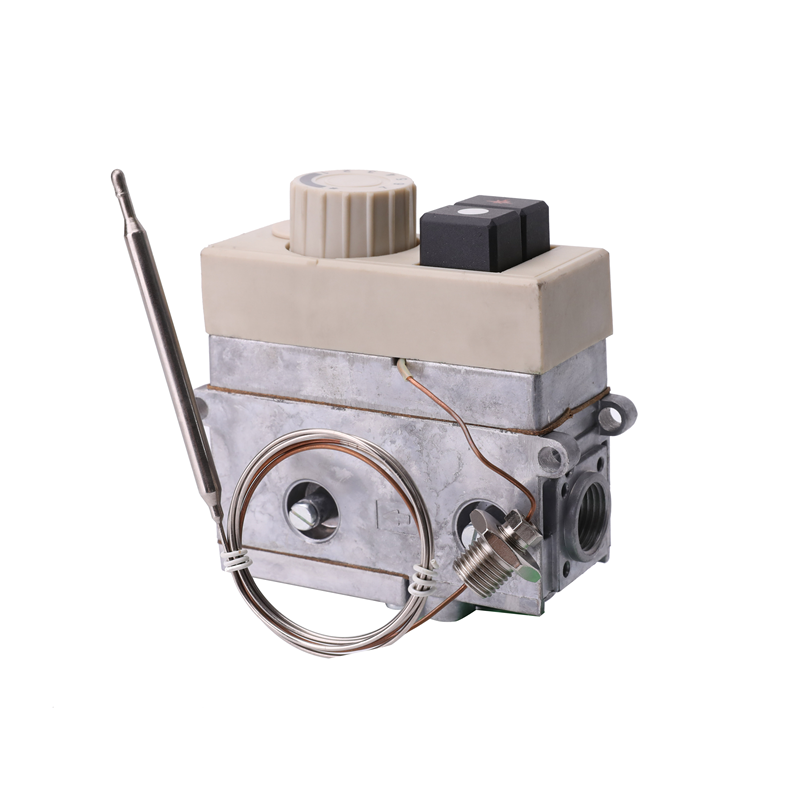

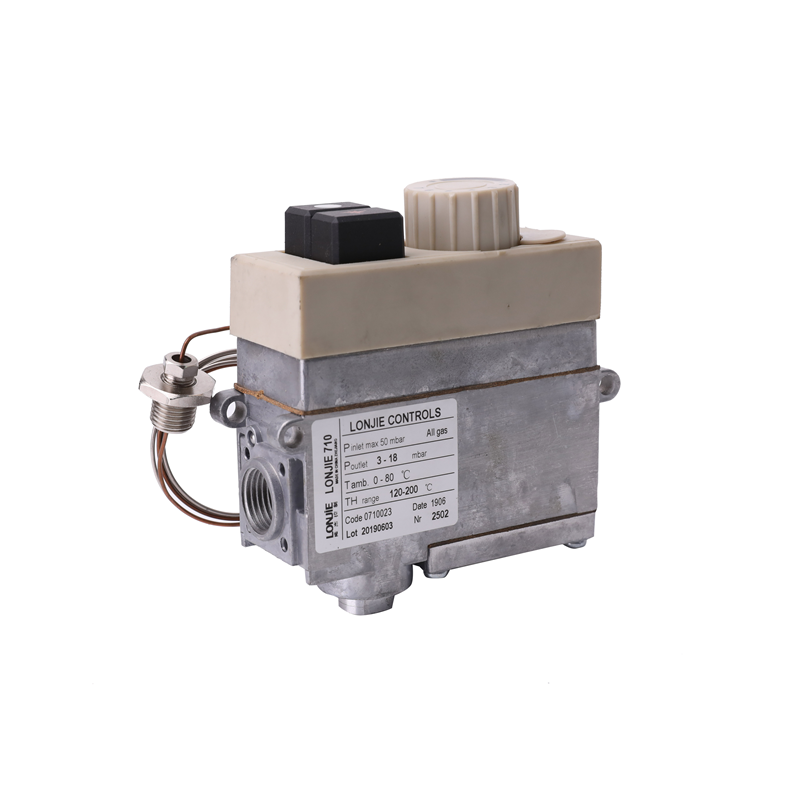

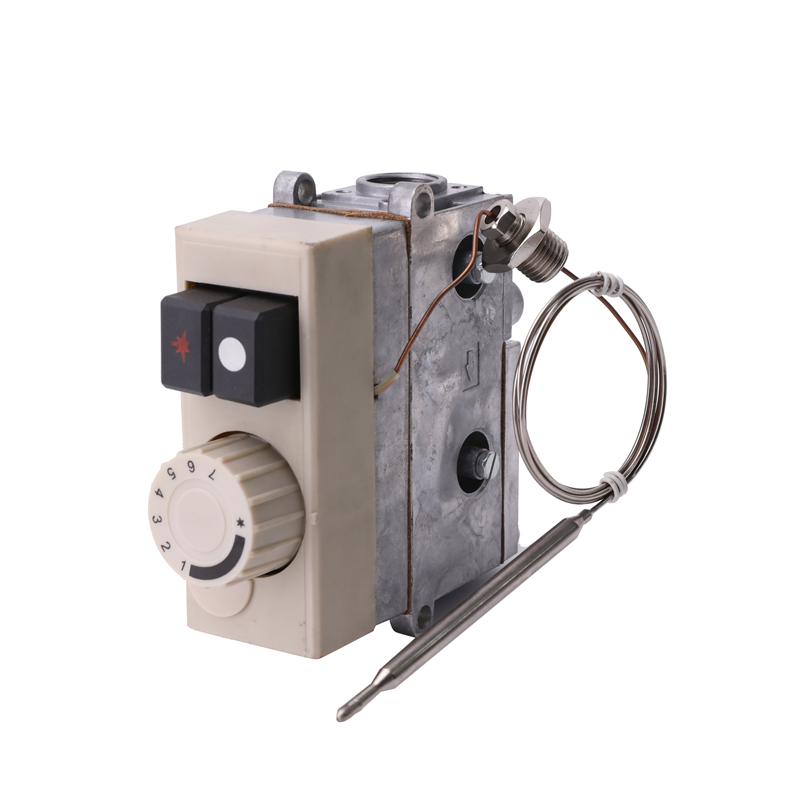

gas valve LJ710 120-200

13858446282 Contact Us
  • Description
  • Drawing
  • Product name Gas valve LJ710 120-200
    Breedname/specifications Gas valve LJ710 120-200
    Application This gas valve is used in commercial kitchen utensils, such as western kitchen fryer, and the temperature is up to 200℃
    Features The gas flow rate can be adjusted manually;
    The air inlet is equipped with a clean gas filter device;
    Inlet and outlet pressure detection hole;
    With emergency stop button, with automatic flameout protection device
    Main technical parameters
    Installation interface size:Thermocouple thread interface M9x1, long open flame interface M10x1,
    gas inlet thread: G1/2,
    gas outlet thread: G3/8;
    Maximum working pressure 1/2PSI, length of temperature sensing wire 1200mm
    Applicable gas NG, LPG, CNG,
