gas valve LJ500

home / product / control valve / gas valve LJ500

How Can We Help You ?

We will reply to you within 12 hours after receiving the inquiry in working days.

13858446282 Contact Us

gas valve LJ500

13858446282 Contact Us
  • Description
  • Drawing

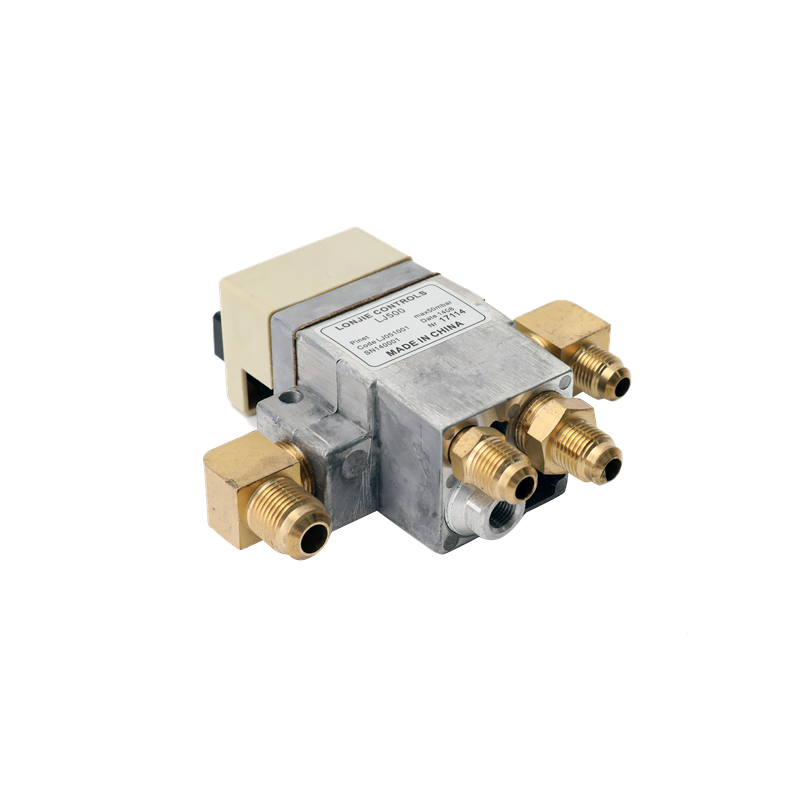

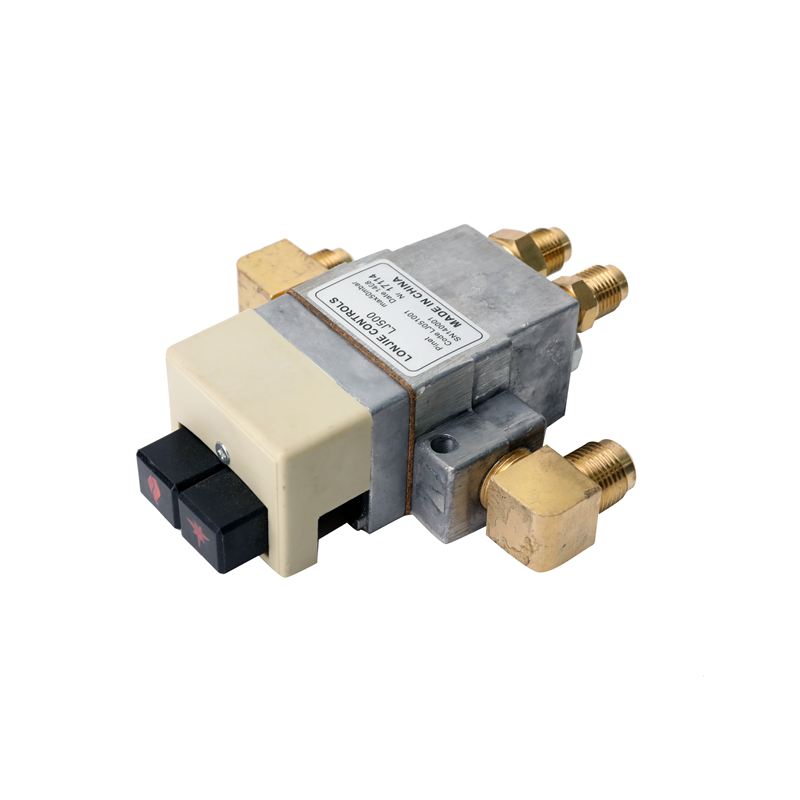

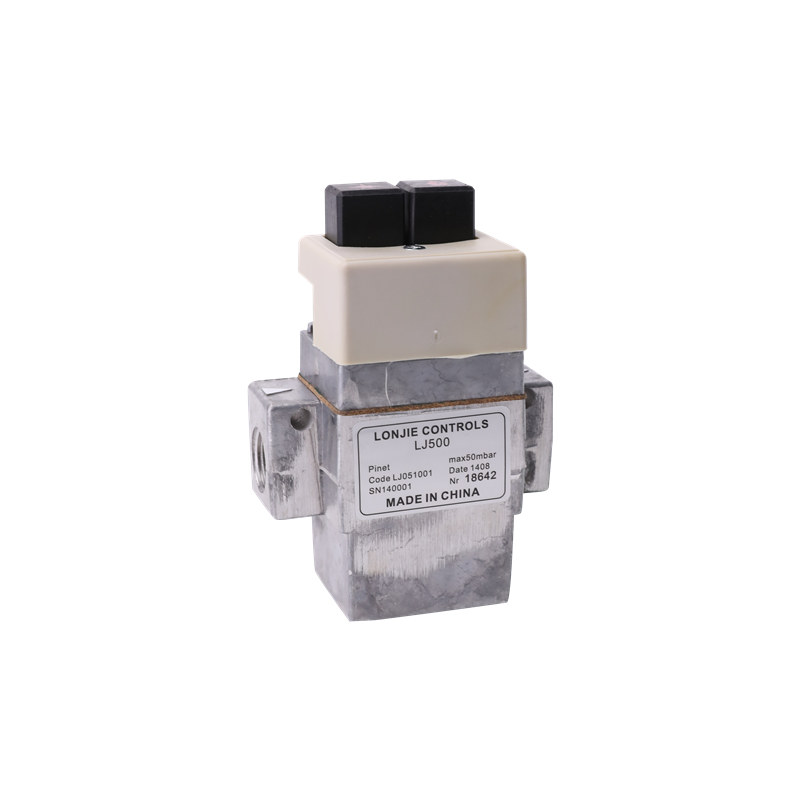

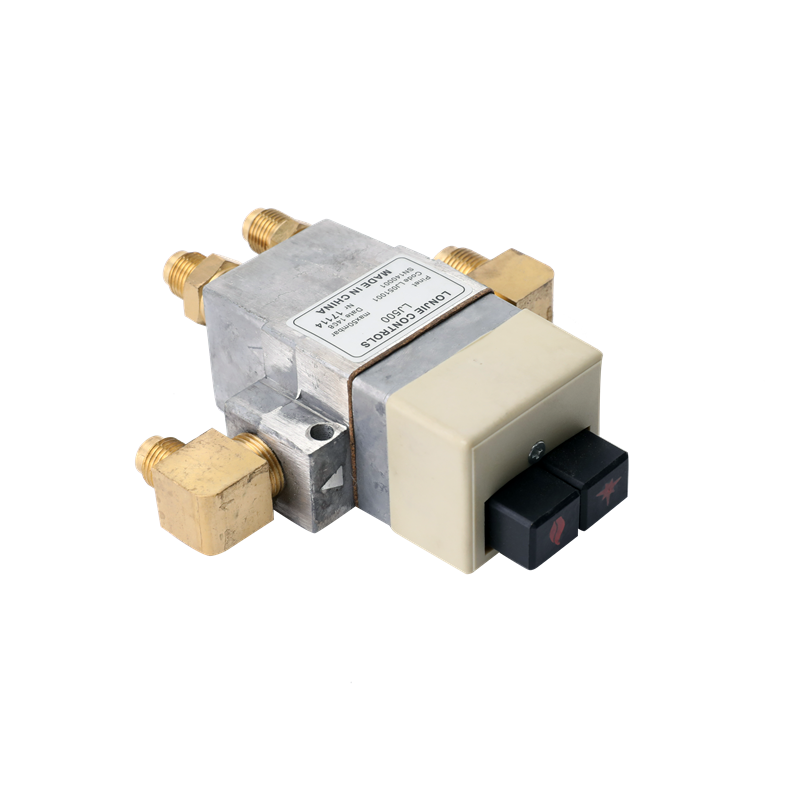

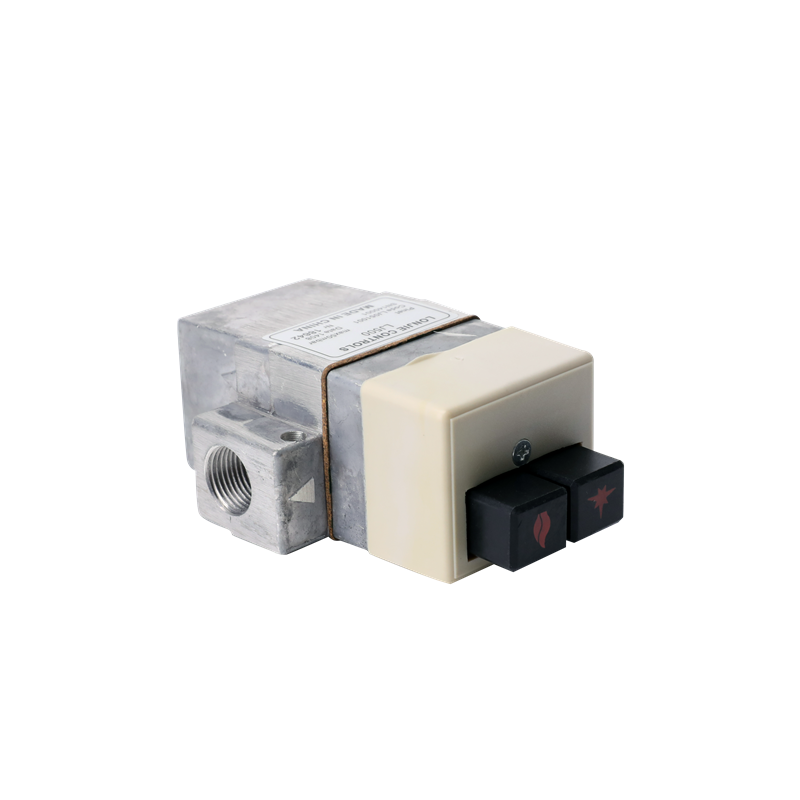

  • Product name Gas valve LJ500
    Breedname/specifications Gas valve LJ500
    Application LJ500 gas control valve is a mechanical control valve, mainly used in household gas heaters, etc.
    Features function buttons control and adjust the gas flow. Equipped with extinguishing protection device. Fully mechanical control
    Main technical parameters Working environment temperature: 0~+80℃; Maximum working pressure: 60mbr; Leakage value under 150mbr or 5mbr: solenoid valve port leakage <60ml/h, valve port leakage <60ml/h, external leakage <60ml/h; Service life of spring: 100000times; Installation interface size: thermocouple interface M9x1, etrenal open flame interface M10x1, gas inlet and outlet: G3/8; Suitable for gas NG, LPG, CNG
